E-Help electric hang glider under $1,000 and specs

dhmartens · Post by **dhmartens** » Fri Jul 26, 2013 8:38 am

[youtube]http://www.youtube.com/watch?v=oQb5S_2ak5k[/youtube]

8 kg strap on electric motorglider system for hangglider. Prototype first flight. Drive line is from model airplane IMAC class, 10 kW, 190 ampere 55 volt motor Rotormax 150 CC from Hobby City. Battery LiPo 4 x 7 cell Zippy 5800 mAh 25C and ESC Turnigy dlux HV 250A from Hobby City.

Motor $398

http://www.hobbyking.com/hobbyking/stor ... motor.html

Controller $199

http://www.hobbyking.com/hobbyking/stor ... v_esc.html

Battery Set of 4 $78.44 $313.76

http://www.hobbyking.com/hobbyking/stor ... _pack.html

Experimental Aviation has added risk and this post assumes no liability or accuracy in any of the specs.

dhmartens · Post by **dhmartens** » Fri Aug 02, 2013 11:17 am

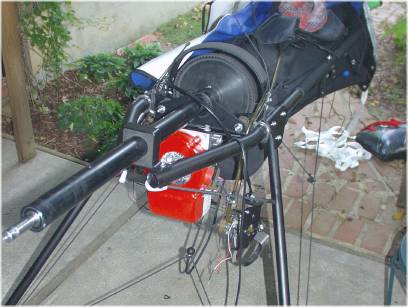

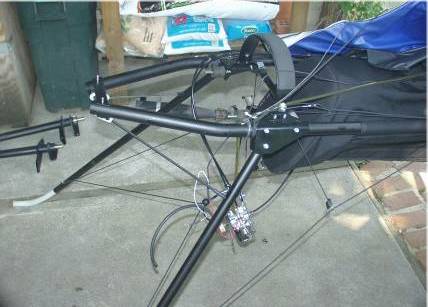

I was looking at adapting this to a Mosquito Harness.

From this page:
http://www.wind-drifter.com/technical/estartconvert.php

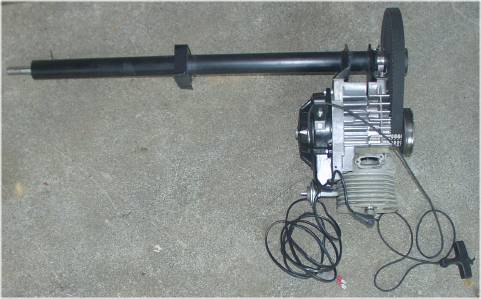

".. reinstalling the assembly in the harness requires only re-attaching the 3 rubber mount points."

You could convert your Mosquito Harness to an Urban Quiet Short term Launch System in less than 5 minutes for $1,000. And convert it back to gas in 5 minutes.
